Rubidoux Family Care Clinic

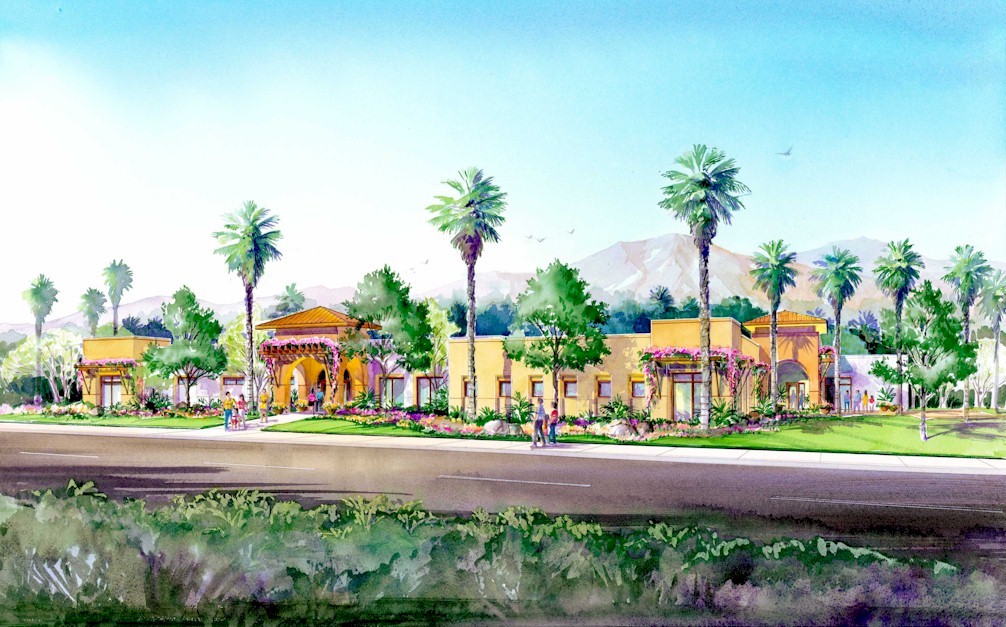

Rendering by Susan Jareckey
Mission Blvd.
Rubidoux, CA
© ALLEN DESIGNS, 2005 (Structural Design Only)

Project Description
This project is a one story medical office building for the County of Riverside located in Rubidoux, CA. It consists of approximately 26,836 square feet of enclosed building including approximately 600 square feet of covered entry. Some of the structural challenges include:
Site is within 9.7 miles of the San Andreas Fault
Design wind velosity is 100 mph (ASD)
There is a liquifaction potential triggering a mat foundation design.

Drawings in PDF format:
S1.1 Foundation Plan
S2.1 Roof Framing Plan
